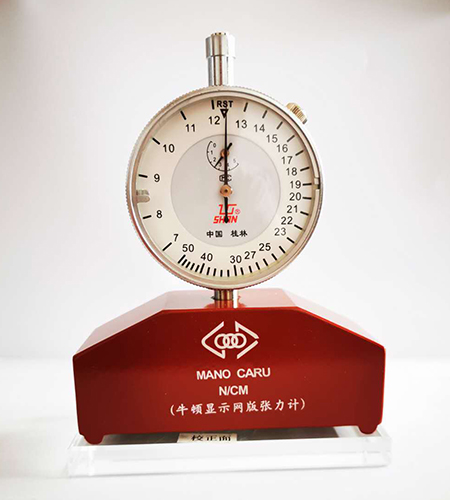

7-50 Newton Tension Meter
1 Tension meter factory has been already verified, the user does not need to adjust 2 Readings display method:
7-50 Newton Tension Meter
1 Tension meter factory has been already verified, the user does not need to adjust 2 Readings display method:
Key Features
- High tensile strength & dimensional stability
- Excellent chemical resistance
- Uniform mesh structure for consistent printing
- Long service life (5000+ print cycles)
Product Description
2. Readings display method: Tension meter data pointer Rotate The first lap data incorrect, pointer Rotate The second lap Start Yes Correct data, (light bomb Tension meter next to Net yarn).
3. Net yarn Per centimeter How much Pull force, (Usually use N -Newton or kg- KG, 1KG=9.8 Newton ) Newton Tension meter Practical significance.
Double needle instructions
Tension meter normal readings: large needle turn 2 ring, start reading.

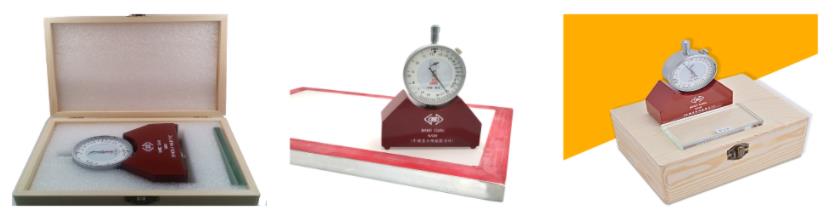

Correction: Turn tension meter on the glass plate in about two and a half circle refers to the triangle is accurate.
Technical Specifications
|
Mesh Type |
Printing Tasks |
Tension (N / CM) |
|
Ultra high tension mesh |
Circuit board and measuring scale |
16-20 |
|
High strength mesh |
Multi-color/Four-color overprinting (Machine Printing) |
16-20 |
|
High-precision ultra-fine mesh |
High-precision multiplayer circuit printing |
25-30 |
|
High precision polyester mesh (Standard monofilament yarn) |
Multi-color and four-color overprint (Hand Printing) |
8-12 |
|
Ordinary polyester mesh (Standard monofilament yarn) |
Flatten object |
8-12 |
|
Nylon Mesh |
Curved or unevenly rough objects |
8-12 |
Technical data
The highest under tension wire Mesh
Listed in the table data type in Switzerland in the thick gauze as test conditions, net yarn can achieve maximum tension not burst, but such as beyond the highest under tension, net yarn is easily broken, please net as a reference:
|
Mesh/Cm |
Mesh/Inch |
Maximum Tension |
Adjust the Pressure |
|
77T |
200Mesh |
30N/cm |
7kg/cm |
|
90T |
230Mesh |
25N/cm |
6.5kg/cm |
|
100T |
250Mesh |
23N/cm |
6kg/cm |
|
120T |
300Mesh |
21N/cm |
5.7kg/cm |
|
140T |
350Mesh |
20N/cm |
5.3kg/cm |
|
165T |
420Mesh |
18N/cm |
5kg/cm |
* Custom specifications available upon request. Contact our sales team for detailed technical data sheets.
