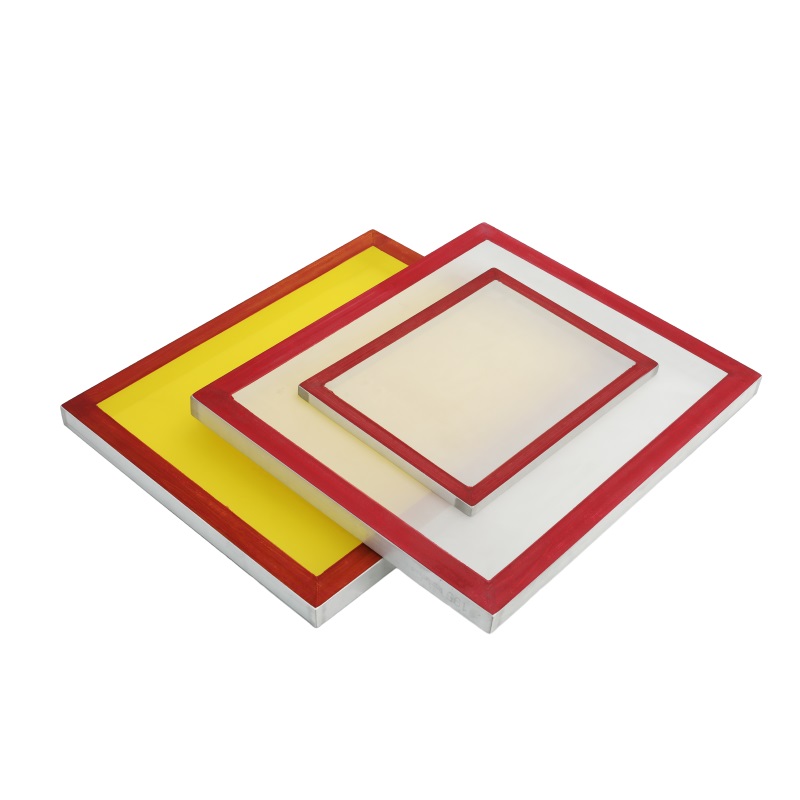

Aluminum Screen Frame 20x24" 34T-100 86Mesh
NameAL20＂x24＂Aluminum Screen FrameMaterialAluminumprofilewith polyester Screen Printing MeshMesh count86mesh inchFrame s
Aluminum Screen Frame 20x24" 34T-100 86Mesh
NameAL20＂x24＂Aluminum Screen FrameMaterialAluminumprofilewith polyester Screen Printing MeshMesh count86mesh inchFrame s
Key Features
- High tensile strength & dimensional stability
- Excellent chemical resistance
- Uniform mesh structure for consistent printing
- Long service life (5000+ print cycles)
Product Description
| Name | AL20"x 24" Aluminum Screen Frame |
| Material | Aluminum profile with polyester Screen Printing Mesh |
| Mesh count | 86mesh/inch |
| Frame size | 20X24”OD |
| Profile | 35mmx35mmx1.4mm |
| Stretched white Mesh | Mesh count ≤ 160 |
| Stretched yellow Mesh | mesh count ≥180 |
| Frame Outside Dimension: | 20”x24” |
| Frame Inside Dimension: | 17.3”x21.3” |
ADVANTAGE:
Constructed with 6063 T5 Alloy, Argon arc welding securely to ensure a water tight seal.
Ground smooth for flatness and handling easily.
Technical Specifications
| Material | High-quality Polyester / Stainless Steel |
| Mesh Count | Available in 10-500 mesh (Polyester) / Up to 1000 mesh (Stainless Steel) |
| Wire Diameter | 0.02mm - 0.15mm (varies by mesh count) |
| Open Area | 25% - 50% (optimized for ink transfer) |
| Standard Width | 1.0m / 1.2m / 1.5m / 1.8m / 2.0m / Custom |
| Roll Length | 30m / 50m / 100m / Custom |
| Color Options | White / Yellow (anti-static) / Black (light-blocking) |
| Certifications | ISO 9001:2015, CE, RoHS, REACH Compliant |
* Custom specifications available upon request. Contact our sales team for detailed technical data sheets.

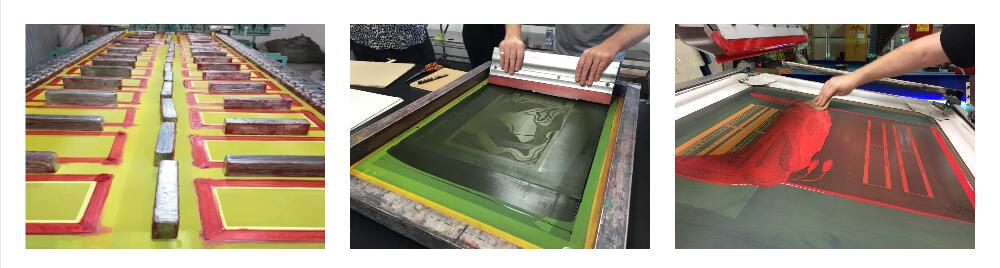

Product Applications
Our premium screen print mesh is widely used in various high-precision printing and industrial applications worldwide.
Purchase Guide
Shipping & Delivery
- Express shipping: 3-7 business days
- Standard shipping: 7-15 business days
- Free shipping for orders over $1000
- Worldwide delivery to 100+ countries
Payment & Warranty
- T/T, L/C, PayPal accepted
- 30% deposit, 70% before shipment
- Quality guarantee for all products
- After-sales technical support
Related Products
Explore more products from our catalog that might interest you

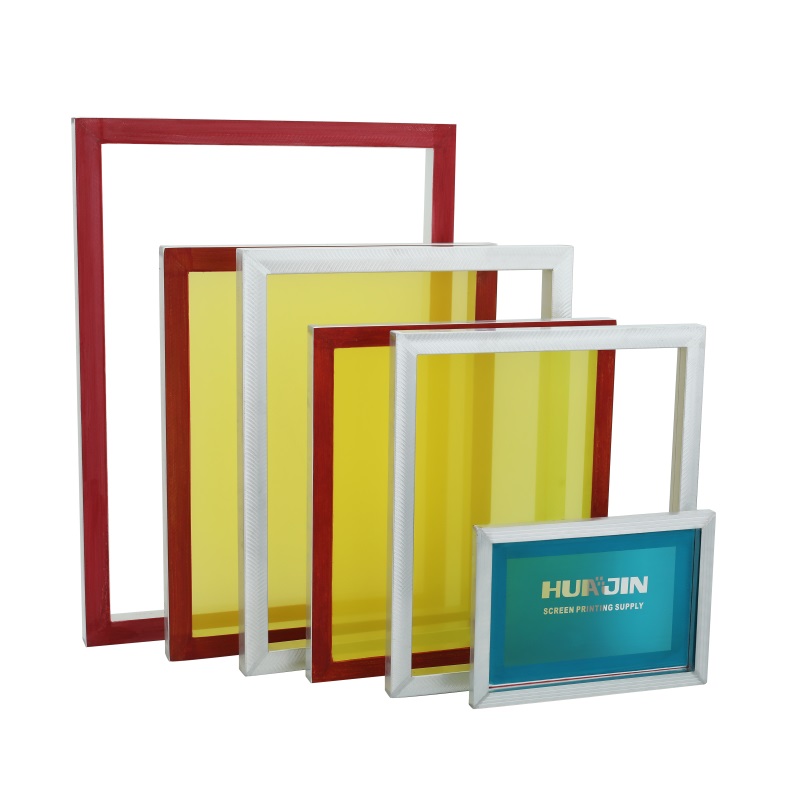

Aluminum Screen Frame

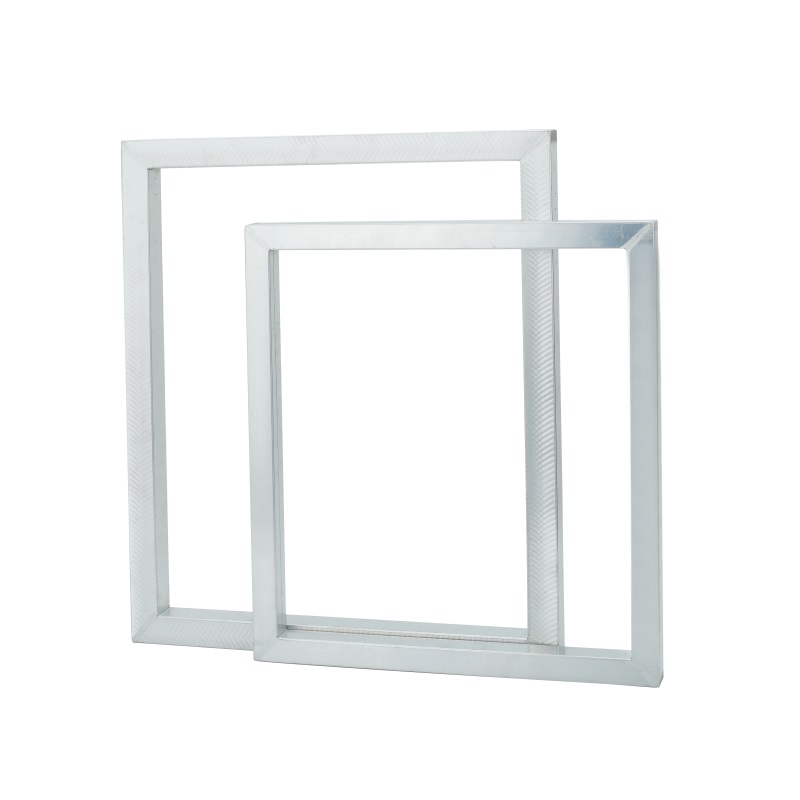

Aluminum Screen Frame Without Mesh
